ePTFE Filter Media for Household Application

ePTFE Filter Media for Household Application

• High tensile strength, which can effectivelysupport thestrength and stiffness of the membrane filter material after compounding.

• The composite filter material has good fastness,excellent breathability, and minimal loss ofbreathability.

Description

The Polyester non-woven materials have the characteristics of strong tensile strength, good thermal stability, and excellent air permeability The ePTFE filter material for household

applications is made of the ePTFE membrane and the polyester non-woven, which has good strength,stiffness, good composite fastness, washable and small loss of ventilation.

Quick Detail

ePTFE filter media, HEPA filter media, laminated ePTFE filter media, PTFE filter media, Industry dust remove material, air filter media, air filter paper.

Applications

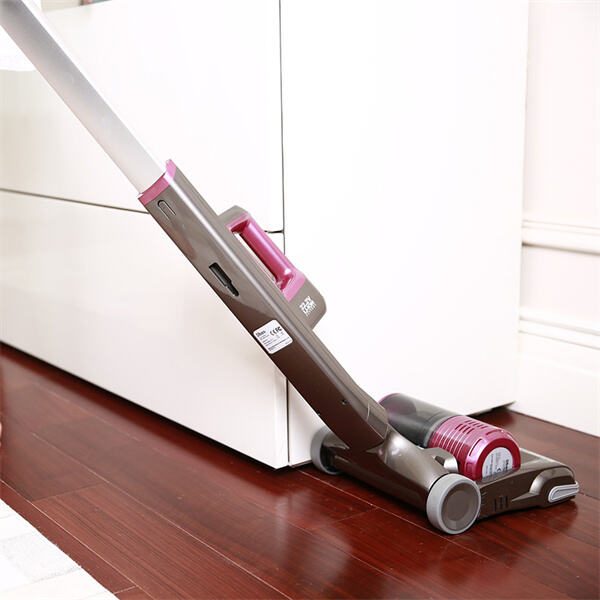

Household Vacuum Cleaner
Car Air Conditioning Filter

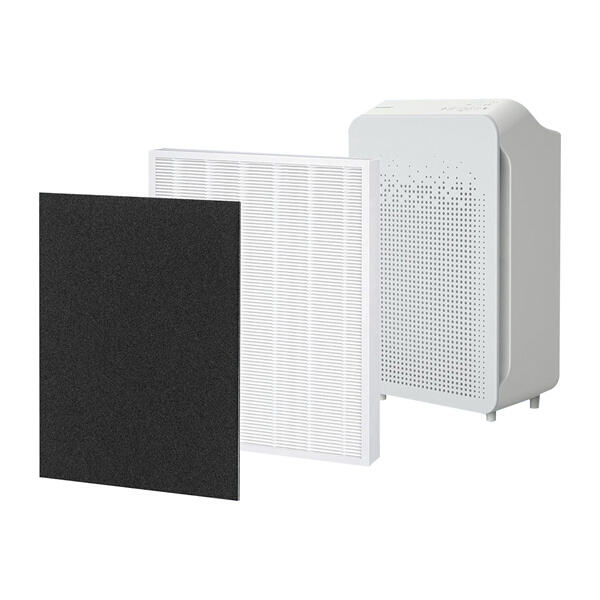

Fresh Air Filter Screen

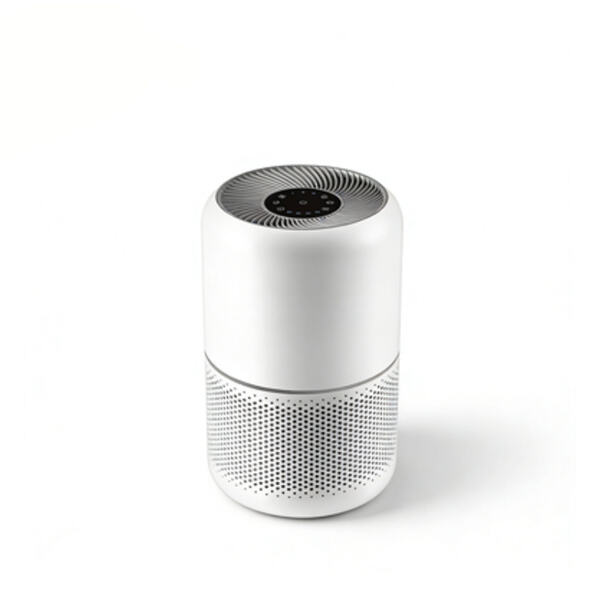

Household Air Purifier

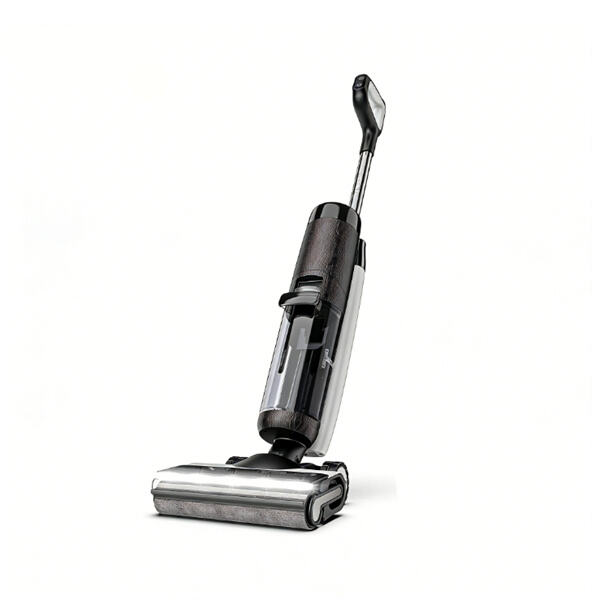

Wet & Dry Vacuum cleaner

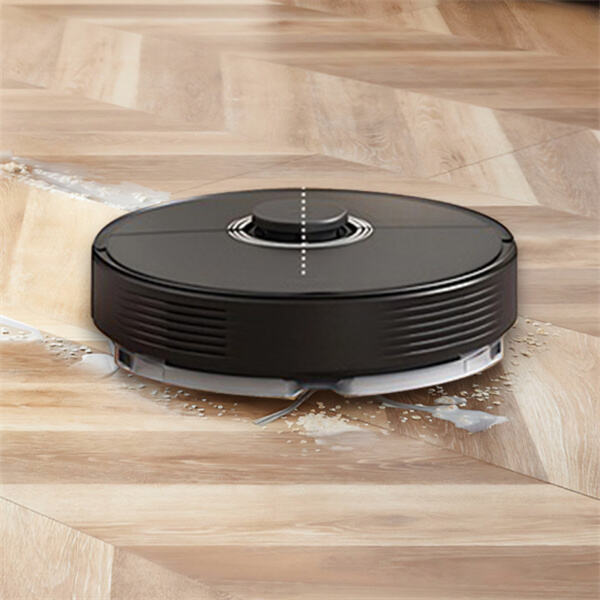

Sweeping Robot

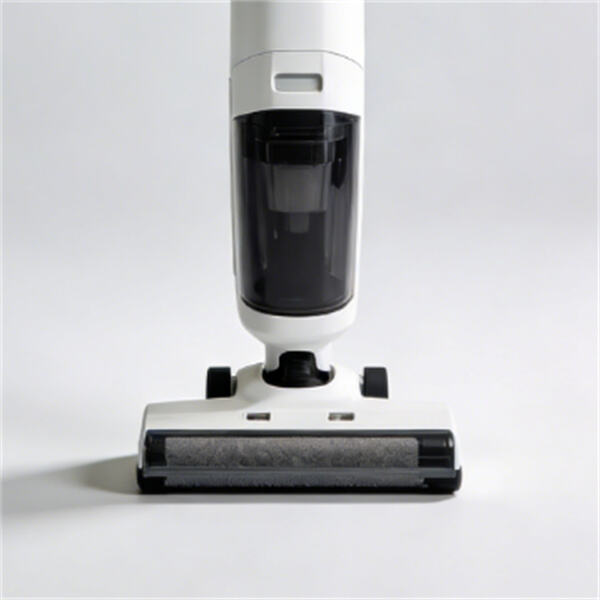

Antibacterial Vacuum Cleaner

Specifications

Code No	Filter Grade	Structure		AVE. Weight	Ave.Thickness	Ave.Pressure Drop	Ave.Filtration Efficiency	Size Range
		Layer	Non--woven	g/㎡	mm	[email protected]/s	%	μm
YKF11022	H13	2	PET	110	0.3	≤230	≥99.95	0.3-0.5
YKF11024	E12	2	PET	110	0.3	≤145	≥99.5	0.3-0.5
YKF11025	E11	2	PET	110	0.3	≤115	≥95	0.3-0.5
YKF11026	H13	2	PET	120	0.38	≤200	≥99.5	0.3-0.5
YKF11028	E12	2	PET	120	0.38	≤150	≥99.5	0.3-0.5
YKF11030	E11	2	PET	120	0.38	≤100	≥95	0.3-0.5
YKF11009	H13	2	PET	110	0.5	≤200	≥99.5	0.3-0.5
YKF11032	E12	2	PET	110	0.5	≤150	≥99.5	0.3-0.5
YKF11033	E11	2	PET	110	0.5	≤100	≥95	0.3-0.5
YKF11035	H13	2	PET	120	0.5	≤200	≥99.5	0.3-0.5
YKF11037	E12	2	PET	120	0.5	≤150	≥99.5	0.3-0.5
YKF11039	E11	2	PET	120	0.5	≤100	≥95	0.3-0.5
YKF080209S	F9	2	PET	80	0.35	≤50	≥60	0.3-0.5
YKF080210S	E10	2	PET	80	0.35	≤65	≥80	0.3-0.5
YKF080211S	E11	2	PET	80	0.35	≤85	≥90	0.3-0.5
YKF080212S	E12	2	PET	80	0.35	≤110	≥99	0.3-0.5
YKF080413S	H13	4	PET	80	0.35	100-165	≥99.95	0.3-0.5
YKF080414S	H14	4	PET	80	0.35	150-215	≥99.995	0.3-0.5
YKF080415S	H15	4	PET	80	0.35	200-265	≥99.995	0.1-0.2
YKF080416S	U16	4	PET	80	0.35	250-325	≥99.9995	0.1-0.2
