PES MEMBRANE
PES Membrane - Hydrophilic
PES Membrane - Hydrophilic
PES Membrane - Hydrophilic
PES Membrane - Hydrophilic
PES Membrane - Hydrophilic
PES Membrane - Hydrophilic

PES Membrane - Hydrophilic

Exceptional Strength: Robust construction with high burst strength for reliable, long-lasting performance.

High Flow Rate: Superior wettability enables fast filtration and increased throughput.

Low Extractables: Minimizes leachables to protect product purity and ensure process safety.

Low Protein Binding: Maximizes recovery of valuable proteins and biologics.

Narrow Pore Distribution: Ensures precise, consistent separation and reliable results.

Flexible Sterilization: Fully compatible with autoclaving, EO, and gamma irradiation methods.

Information
Place of Origin: Suzhou, Jiangsu, CN
Brand Name: UNM
Model Serial PES
Certification: SGS, ROSH
Minimum Order Quantity: 200m²
Packaging Details: Carton
Delivery Time: 15-28days
Payment Terms: T/T
Daily output 10000m/24h
Description

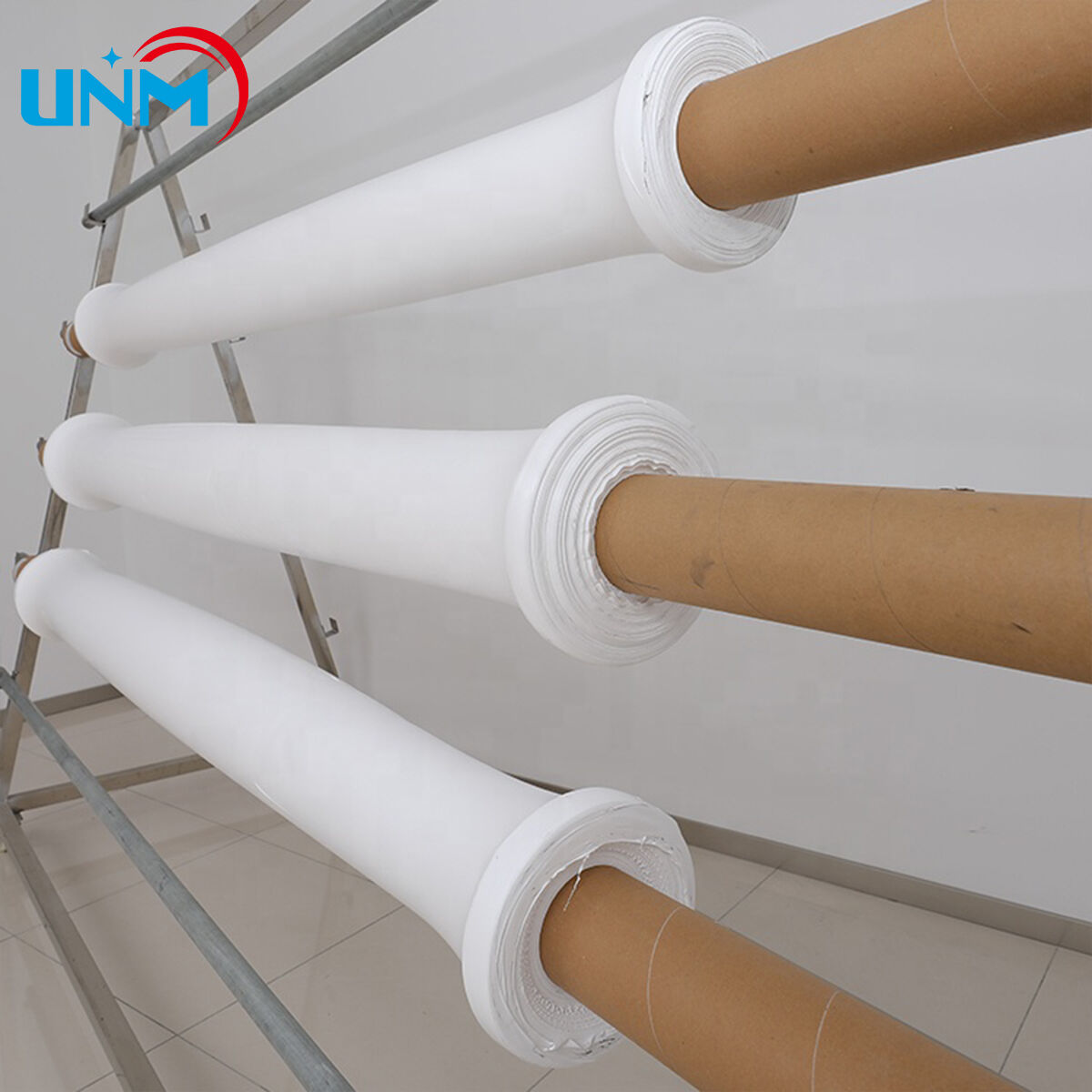

Hydrophilic PES Membrane

Polyethersulfone (PES) membranes manufactured through a specialized process offer distinct advantages among membrane types. With excellent inherent hydrophilicity, these membranes wet rapidly upon water contact, delivering exceptionally high water flow rates. Additionally, they exhibit minimal protein adsorption, reducing sample loss and fouling for extended service life. As a result, they are widely applied in sterilization and filtration of liquids, as well as clarification processes in food, pharmaceutical, and related industries, ensuring reliable performance in critical applications.

This hydrophilic PES membrane is engineered with a uniform surface morphology and a narrow pore size distribution, ensuring consistent and high-resolution separation. Its distinctive sponge-like matrix throughout the cross-section provides a higher density of interconnected pores compared to conventional finger-like structures. This unique architecture not only significantly enhances fouling resistance by minimizing pore blockage but also delivers exceptional mechanical robustness. Consequently, the membrane maintains performance integrity over extended periods, offering a longer service life and reduced total cost of operation in rigorous filtration processes.

Quick Detail

PES membrane, Polyethersulfone membrane, Hydrophilic PES membrane, PES filter membrane, Sterile PES membrane, PES membrane manufacturer,PES membrane pore size 0.45μm.

Applications
  • Bacterial isolation.jpg

    Bacterial Isolation

  • General filtration.jpg

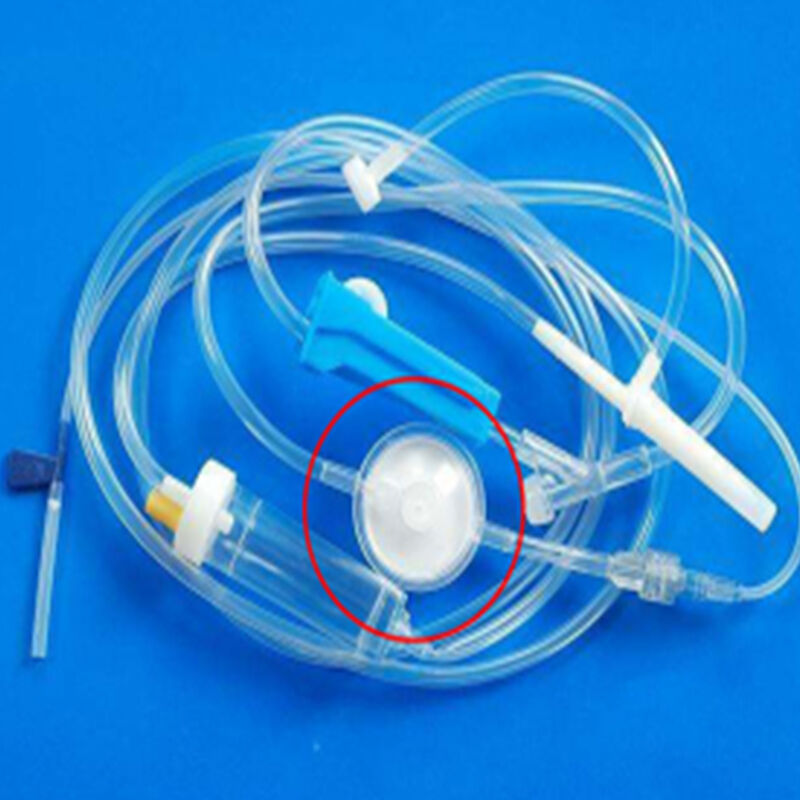

    General Filtration

  • IV therapy.jpg

    IV Therapy

  • Pharmaceutical filtration.jpg

    Pharmaceutical Filtration

  • Sterile filtration.jpg

    Pic title

  • pes membrane   hydrophilic-0

    Sterile Filtration

Specifications
Model No. Material Width Thickness Pore Size Bubble Point Water Flux
mm Micron Micron
PES022S PES 50-280 130-170 0.03 3800-5000 >1.5 70%IPA 30%Water
PES005S PES 50-280 130-170 0.05 2800-3800 >3 70%IPA 30%Water
PES010S PES 20-520 100-120 0.1 1800-2600 >10 70%IPA 30%Water
PES022S PES 20-520 100-120 0.2 3500-4800 >20 20℃Water
PES045S PES 20-520 100-120 0.45 2500-3300 >45 20℃Water
PES065S PES 20-520 100-120 0.65 18800-2400 >70 20℃Water
PES080S PES 20-460 100-120 0.8 1100-1700 >100 20℃Water
PES100S PES 20-460 100-120 1 1000-1400 >110 20℃Water
PES120S PES 20-460 100-120 1.2 800-1200 >140 20℃Water
PES300S PES 20-460 100-120 3 500-750 >400 20℃Water
PES500S PES 20-520 100-120 5 200-400 >800 20℃Water
